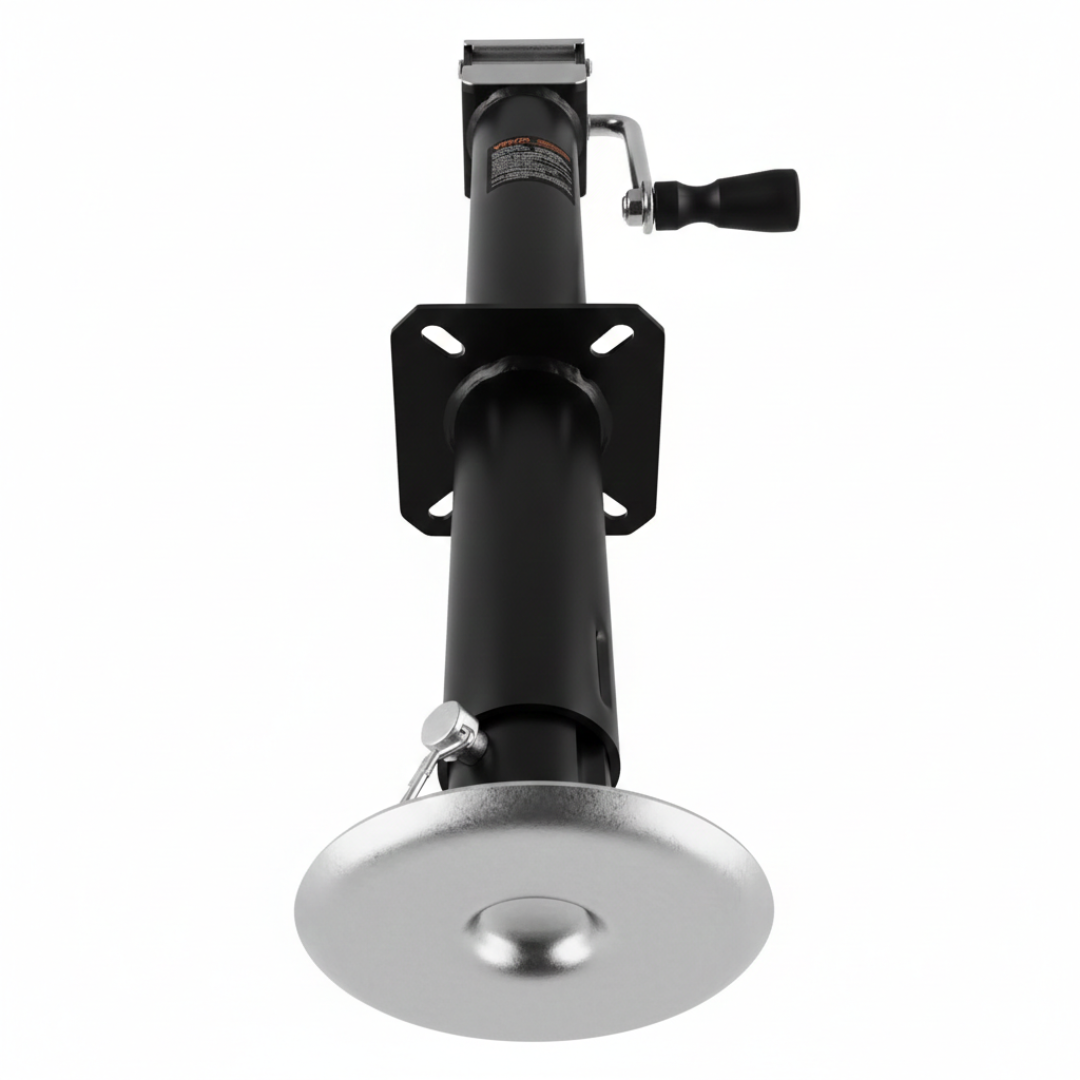

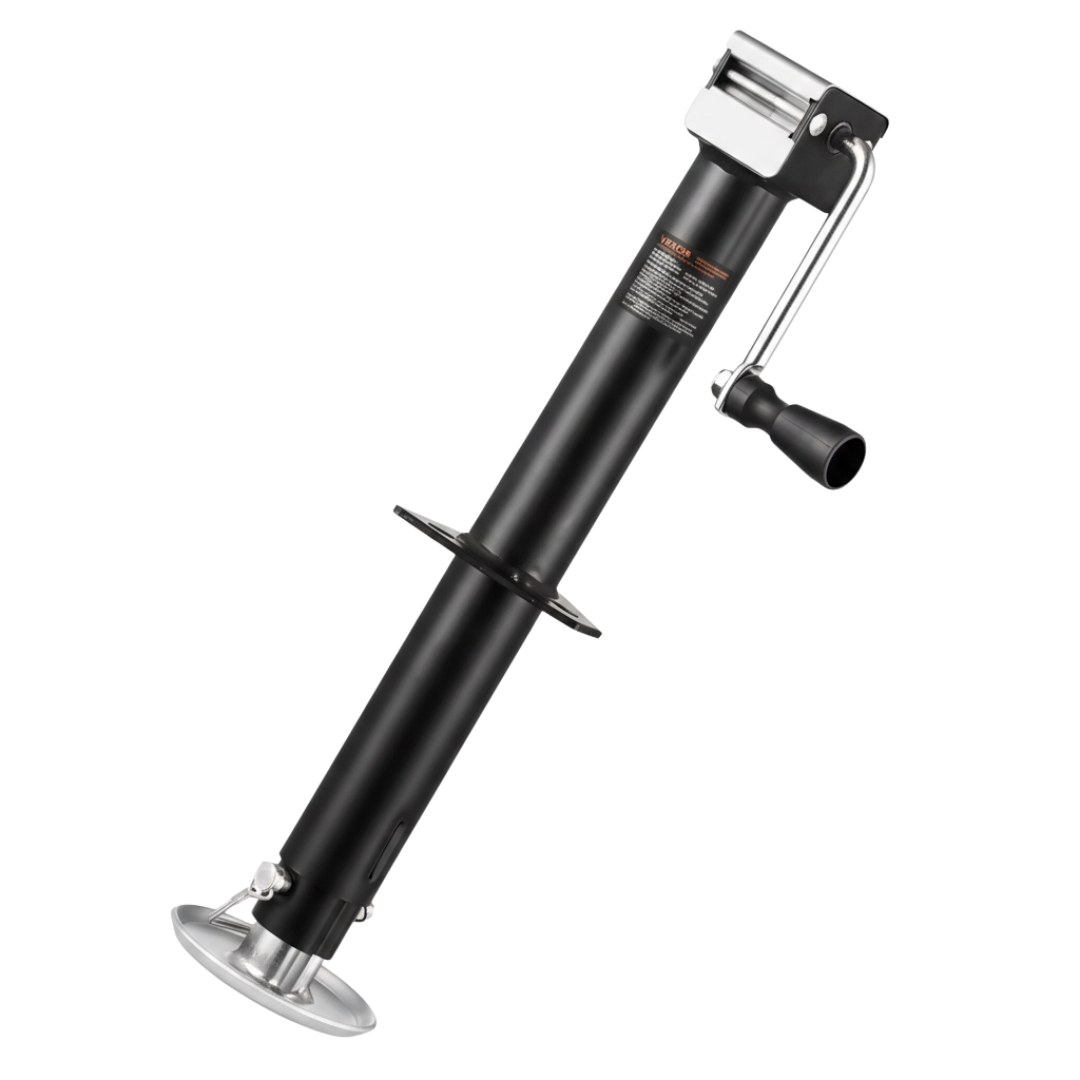

5000 lb A-Frame Trailer Jack, 15 in Travel, Adjustable Drop Leg
5000 lb A-Frame Trailer Jack, 15 in Travel, Adjustable Drop Leg
5000 lb A-Frame Trailer Jack, 15 in Travel, Adjustable Drop Leg
5000 lb A-Frame Trailer Jack, 15 in Travel, Adjustable Drop Leg
5000 lb A-Frame Trailer Jack, 15 in Travel, Adjustable Drop Leg
5000 lb A-Frame Trailer Jack, 15 in Travel, Adjustable Drop Leg

5000 lb A-Frame Trailer Jack, 15 in Travel, Adjustable Drop Leg

$19.99 $14.99
/
In Stock · Ready to Ship
🚚 Free Shipping
↩️ 30 Days Returns
🔐 Secure checkout
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay

Coupler Height Adjustment, A-Frame Mount

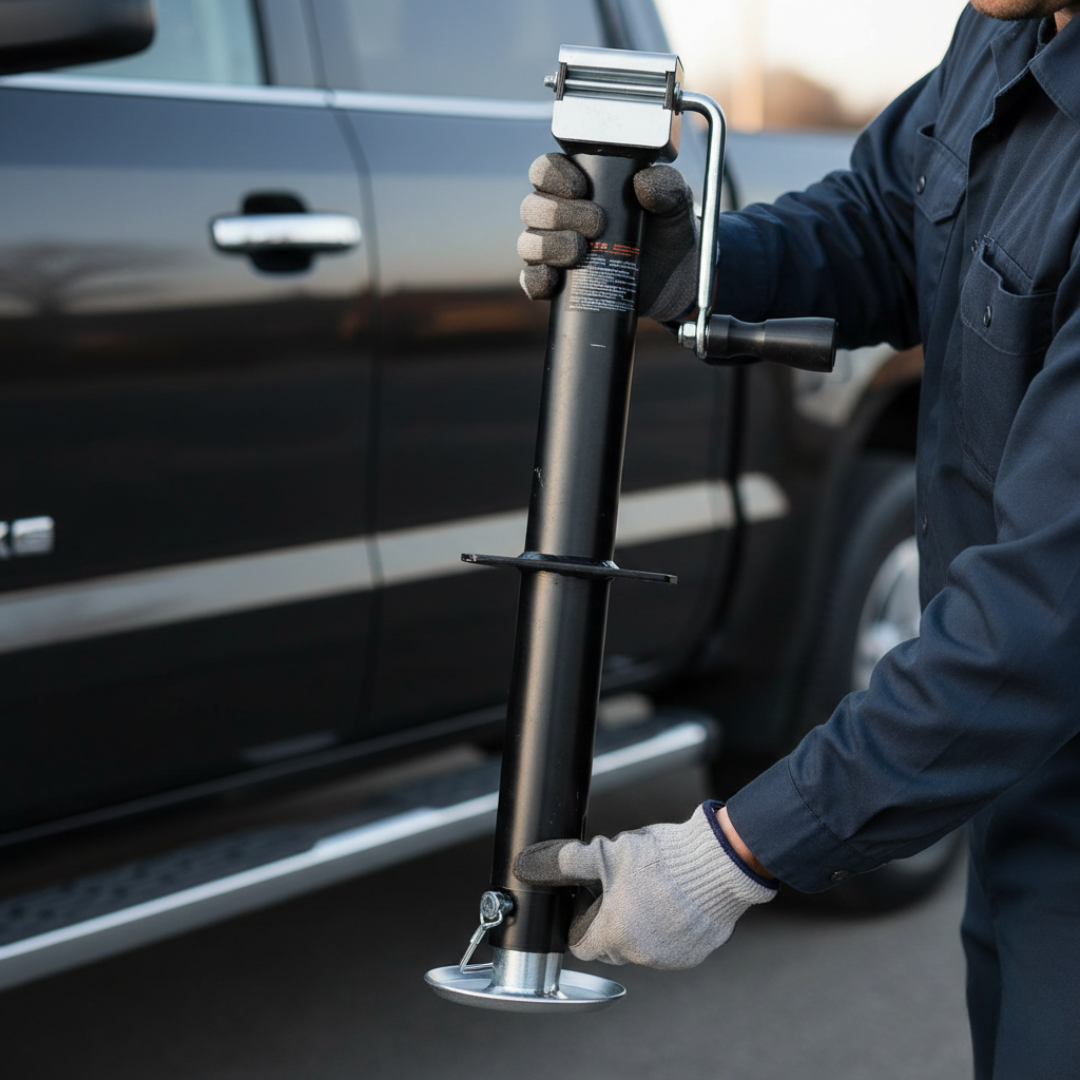

This A-frame tongue jack uses a telescoping carbon steel tube with an adjustable drop leg for coupler height changes at the trailer tongue. Rated load capacity is 5000 lb. Vertical travel is 15 in, with a lifting range of 9.65 to 24.64 in. Mounting is intended for A-frame trailer tongues using bolt-on hardware or weld-on attachment.

Drive Mechanism and Manual Handle

The internal drive moves the inner tube up or down to position coupler height during hitching and unhooking. Height is set using the telescoping tube and the drop-leg hole positions. The swivel mount allows the jack to rotate to a stowed position parallel to the trailer tongue.

Installation, Stow Position, and Basic Maintenance

Install using the A-frame mounting pattern with bolts, or weld the bracket to the trailer tongue based on the trailer’s setup. Set the drop leg to the nearest height position, then adjust final height using the lift mechanism. Rotate the jack into the stowed position for towing and lock it using the pivot hardware. Clean the tubes and check fasteners, pins, and adjustment holes during routine trailer inspection.

Product Benefits:

  • Coupler Height Adjustment: Telescoping tube and drop-leg pin positions set coupler height during hitching and unhooking.
  • A-Frame Tongue Mount: Fits standard A-frame trailer tongue mounting patterns using bolt-on hardware or weld-on attachment.
  • Stow Position Rotation: Swivel mount rotates the jack parallel to the trailer tongue for towing clearance.
  • Load and Travel Specs: Rated 5000 lb capacity with 15 in vertical travel and a 9.65 to 24.64 in lifting range.

Specification:

  • Material: Carbon steel
  • Dimensions: 25 × 6 × 6 in
  • Weight: 11 lb
  • Operating Range or Capacity: 5000 lb load capacity; 15 in vertical travel; 9.65 to 24.64 in lifting range
  • Connection Type: A-frame bolt-on or weld-on mount; swivel pivot; drop leg with pin/hole indexing
  • Placement or Use Area: Trailer tongue exterior (A-frame horse, utility, and boat trailer applications)
  • Order Cut-Off Time: 3:00 PM EST
  • Processing time: 1–3 business days (Monday to Friday)
  • Delivery time: 3–7 business days after dispatch (Monday to Friday)
  • Shipping coverage: Orders shipped across the United States
  • Free delivery: Available on all the United States orders
